factory direct horizontal hot chamber cast machine(die casting machine)

FOB Reference Price:Get Latest Price
$22,700.00 - $35,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
J219A
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Zhejiang, China
Machine Type:
hot chamber die casting machine
Brand Name:
Yinshan
Voltage:
380V 50HZ
Power(W):
11KW
Dimension(L*W*H):
4300*1800*2250mm
Weight:
4700KG, 4700KGS
Certification:
ISO CE
Warranty:
1 YEAR
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Engineers available to service machinery overseas
Key Selling Points:
long service life
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Local Service Location:
none
Showroom Location:
none
Applicable Industries:
Manufacturing Plant, HOME USE, Construction works , automobile and motorcycle parts, instruments, hous
Injection stroke::
130mm
Die locking force::
900kN
Injection force::
75KN
Dosage of fluid metal per shot(zinc)::
1.6kg
Oil consumption of burner::
1.5-6.0kg/h
Effective volume of crucible(zinc)::
350kg
Inner space between the bars (HXV):
360X360mm
Thickness of die block(Min./Max):
120/360mm
Supply Ability
Supply Ability:
60 Set/Sets per Month
Packaging & Delivery
Packaging Details
The height of machine is2.3m
nude packing of machine and case of spares parts
etc.
Port
Ningbo
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Video Description
Product Description

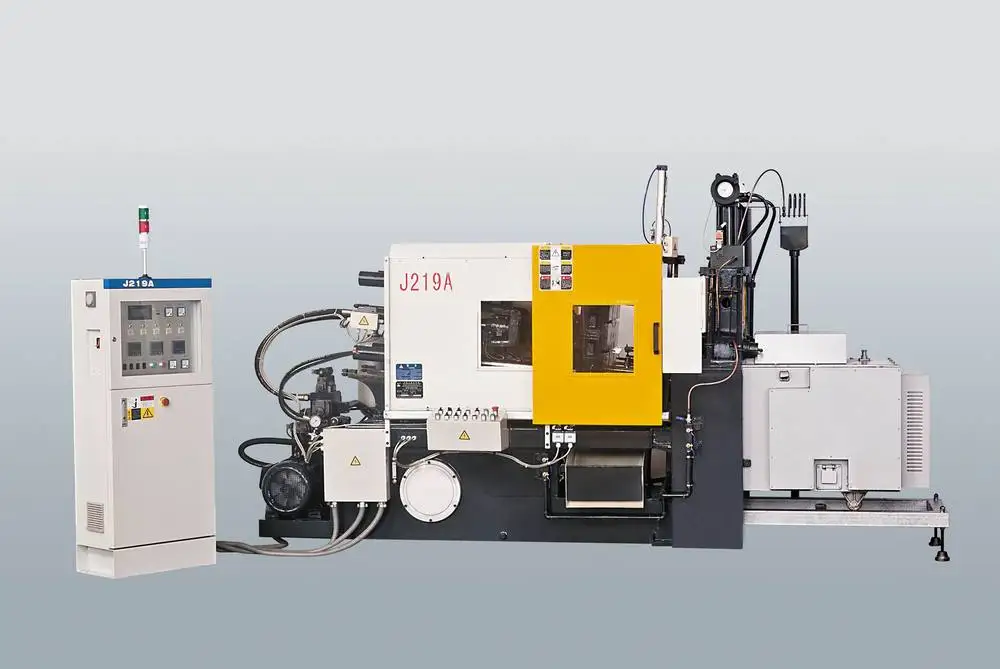

The hot chamber die-casting machine low melting point metal of colored alloy of zinc and lead ,which are widely used in automobile and motorcycle parts, instruments, household hardware and home appliances industry.

Hydraulic pressure is controlled by flow and pressure proportion value, speed and pressure can be regulated,Hydraulic boosting is constant and effective, injection rate over 6m/s 3-pot automatic lift structure make module lift more balabced and convenient .

The machine adpot 3-moment locking module, low pressure effectually protectmodule and die.

The machine is equipped with electronics and hydraulic pressed parts of import. The machine it is controlled by program which is stable and reliable.

The project unitJ219A
Die locking force kN900
Stroke of moving platen mm270
Inner space between the bars(HxV)mm360x360
Thickness of die block (HxV)mm120x360
Injection force kN75
Injection stroke mm130
Ejection force kN60
Ejection strokemm60
Diameter of shot sleevemm50
Max projecting area of casting cm2236
Working pressure of vane pumpMPa12
Motor powerkW11
Dosage of fluid metal per shot (zinc)kG1.6
Effective volume of crucible(zinc)kG350
Oil consumption of burnerkg/h1.5-6.0
Volume of oil tankkG250
Machine weight kG4700
Overall dimensions (L*W*H)mm4300x1800x2250


Packaging & Shipping

 WITH A PP BAG (SUCH AS THE PHOTOThe machine size is 4300*1800*2250mm


Our Services

 We have the many engineer in the factory they can give you the service by Internet or go to your factory. Also you can go to our factory to study.

Company Information

 Ningbo Dongfang Die-casting Machine Tool Co.,Ltd,was set up in 1981,with a current area of 40000 square meters. The company holds a capital of RMB120 million yuan,with many types of machining centers,numerical controlled machine tools,more than one hundred exactitude metal-cutting equipments.There are 35 engineering technicians in the "Ningbo Dongfang Die-casting Machine Tool research center",and we have a strong strength of new product R&D and manufacturing.

Since our leadong product ,Yinshan Brand Die-casting Machine, won the fame of name brand product in 1995,we have developed two whole series of twenty types,seven of which have been approved as national top new products,and six new products have won the scientific progress awards in province and city. Our products sell well domestically and internationally. In the past years,we had provided our clients with more than eight thousand Die-casting Machines, which was a big contribution to the Die-casting industry in our country. Thanks to such achievement, our company has won a good reputation. Now the Yinshan Brand Die-casting machine is a famous name as well as a famous trademark in Zhejiang province.

Now ,our company is a national standard draft company of producing machines,National new Hi-tech company, Municipal engineering technology center,Zhejiangprecursor of biding by contract and putting credit first,as well as Civilized company of Ningbo city. The goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation in the Ningbo Dongfang Die-casting Machine Tool Co.,Ltd, and we will persistently pursue to provide perfect products and since serivce.

The whole staff of Ningbo Dongfang Die-casting machine Tool Co.,Ltd, are welcoming all the guest from our country and the rest of the world to the beaatiful coastal city-Ningbo.
