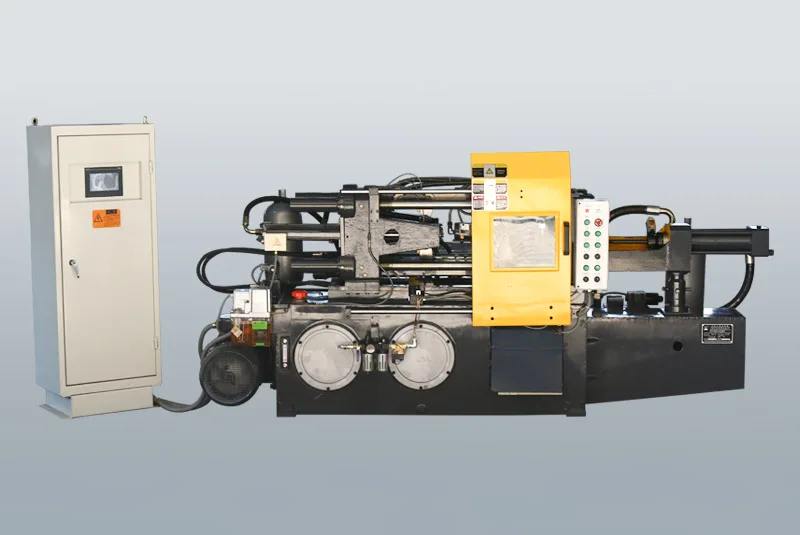

38Ton horizontal cold chamber die casting machine

  • >=1 Sets
    $1.00
Model Number:
YSC38
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Machine Type:
Cold Chamber Die Casting Machine
Clamping Force (kN):
380 kN
Open Stroke(mm):
240 mm mm
Space between Tie Bars(mm):
210x210mm
Diameter of Bars(mm):
30 mm mm
Casting Force(kN):
40 kN
Casting Stroke(mm):
250 mm mm
Casting Pressure(MPa):
80 MPa
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1 YEAR
Core Components:
PLC, MOTOR, pump
Max.Thickness of Die Block (mm):
320 mm mm
Min.Thickness of Die Block (mm):
120 mm mm
Ejection Force(kN):
35 kN
Ejection Stroke(mm):
50 mm mm
Place of Origin:
Zhejiang, China
Brand Name:
Yinshan
Condition:
New
Voltage:
380V
Dimension(L*W*H):
3150X1100X1300mm
Certification:
CE ISO
Weight (KG):
2030
Power (kW):
7.5
Warranty:
1 YEAR
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Key Selling Points:
long service life
After Warranty Service:
Video technical support, Online support
Applicable Industries:
HOME USE, Construction works , Manufacturing Plant
Local Service Location:
none
Showroom Location:
none
After-sales Service:
Video technical support, Engine
Chamber:
cold chamber die casting machine
Type:
Metal casting machinary
Die locking force:
400kN
Injection force:
40kN
Ejection force:
35kN
Dosage of fluid metal per shot(aluminum):
0.4kG
Motor power:
7.5KW
Dry cycle:
4s
Working pressure of vane pump:
8.5MPa
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Port
Ningbo
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Video Description
Product Description

Point 1.

This cold chamber die casting machine is widely used for mass production of foundry goods made of nonferrous metal such as aluminum, zinc and copper in the industries of automobiles, motorcycles, meters and instruments, household appliance hardware of daily necessities.

Point 2.

Computer-programmed control;hydraulic drive; crank expanding structure; 4-rod pilot elastic stress framework; locking that is tensile, faster and reliable; hydraulic ejector for lift-out, mould thickness can be controlled by hydraulic motor; 3-step hydraulic boosting and injection system that is constant and effective; injection rate over 6M/S and minimum boosting time less than 25ms.

Point 3.

The die cast machine is superior in performance, high in productivity and smooth in operation. It is advantageous in technology in China's mainland.

Our Company strategy

* With a history of over 37 years

* Factory Area : 40,000 square meters

*Production Capacity : 10,00-sets yearly capacity

*Employees : More than 500

*Company owed Tech & Research center

* Main Machines: 100sets

We can supply this  die casting machine with the die locking force from 250KN to 2800KN. That is to say the scale of machine is 25ton to 280ton. This allows you choose the most suitable scale machine for your production. We do best in the manufacturing process from the material,including forging steel and iron plates, to maching, japaning and assembly.


 If you already have machine, you can tell your demand in detail, then let's discuss what can we do for you. We can help you do no matter the mold working or machine spar partes.
